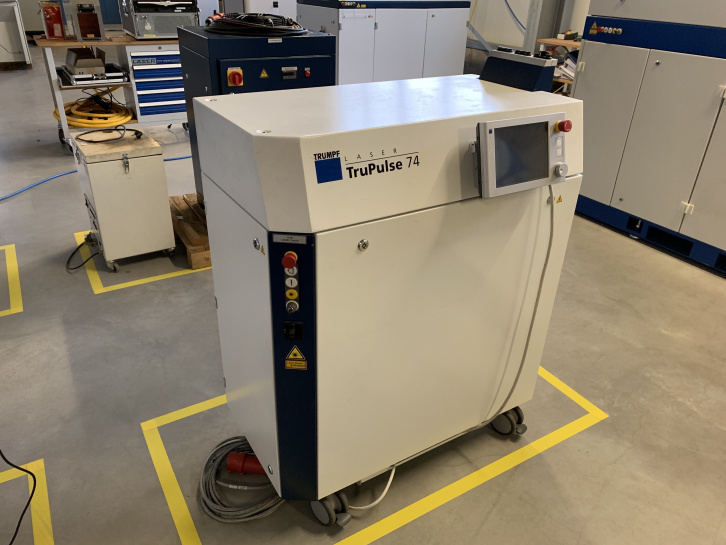

TRUMPF TruPulse 74
|
   |
||||||||||||||||||||||||||||||||||||||||
Technical specifications |
| Manufacturer: TRUMPF |
| Designation: TruPulse 74 |
| Condition: very good condition |
| Year of manufacturing: 03/2010 |
| Laser type: Nd:YAG laser |
| Wavelength: 1064 nm |
| Operating mode: pulsed |
| Laser power: 70 W |
| Stimulation: lamp pumped |
| Beam quality (BPP): 16 mm mrad |
| Operating voltage: 400 V AC |
| AC frequency: 50 ... 60 Hz |
| Applications: cutting, welding, cladding |
| Materials to be processed: mild steel, high strength steels, stainless steel / CrNi, aluminium, titanium, copper / brass |

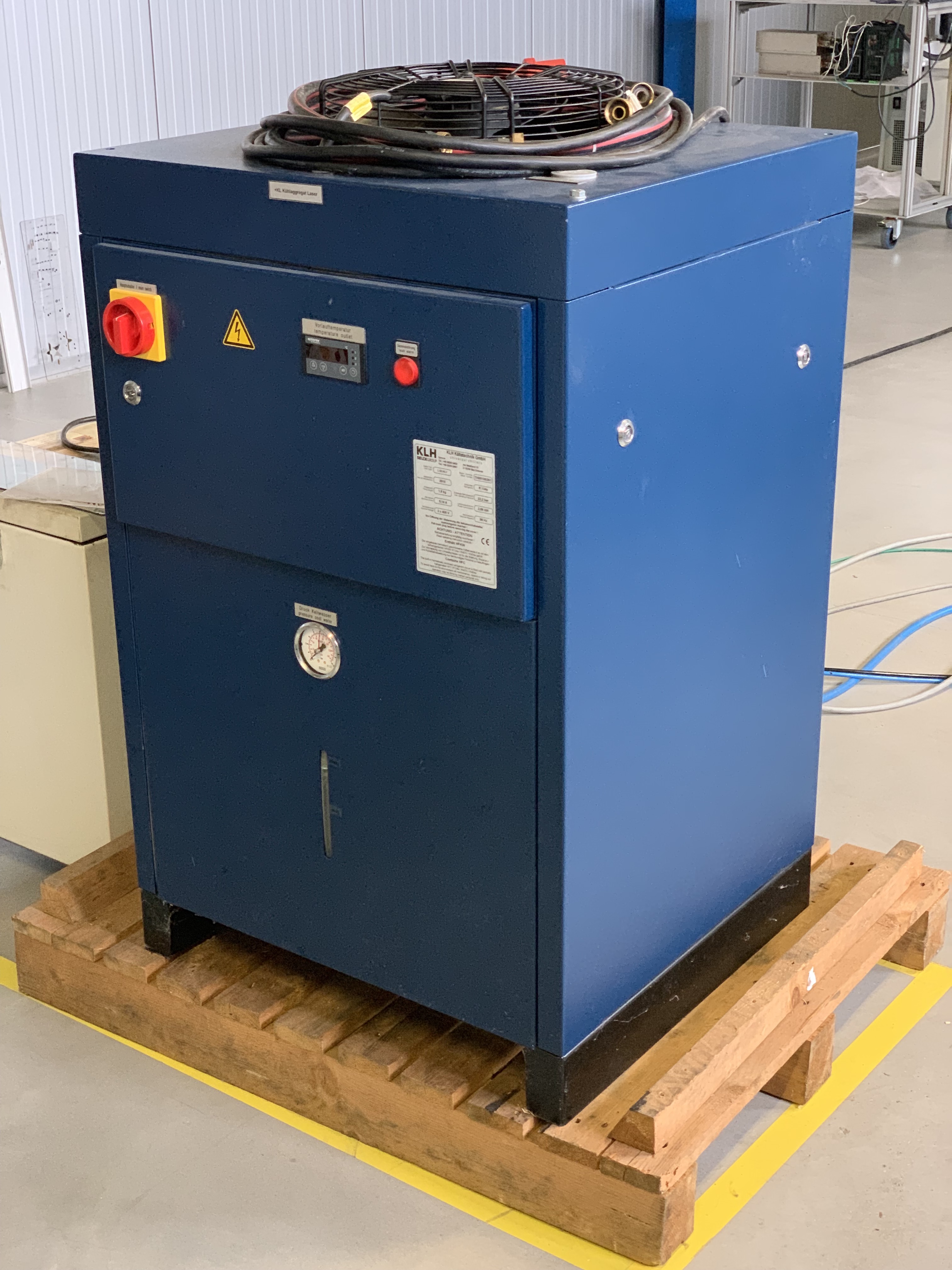

| Equipment: 1 fiber exit, water-air-chiller KLH |
Fiber cable |
| Fiber cable connector: LLK-B |
| Fiber core diameter: min. 400 µm |
Descriptionmax. pulse power: 6 kW max. pulse energy: 60 J pulse duration: 0,3 - 50 ms max. average power: 70 W |
Description
max. pulse power: 6 kW
max. pulse energy: 60 J
pulse duration: 0,3 - 50 ms
max. average power: 70 W
