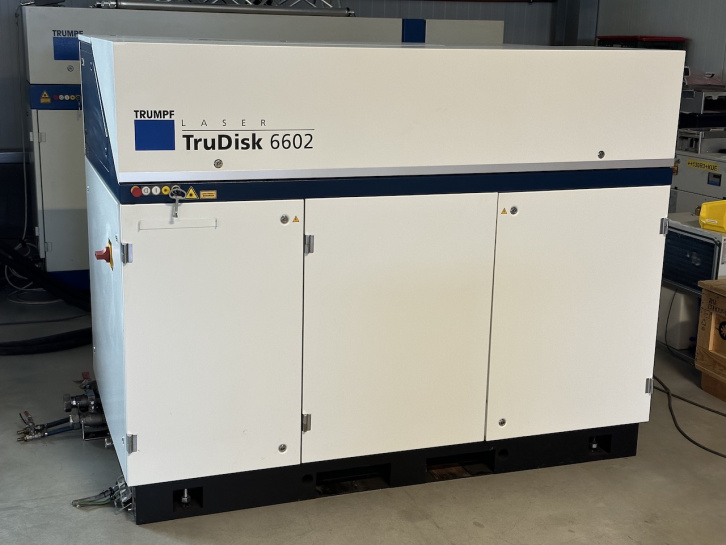

TRUMPF TruDisk 6602
|
  |
||||||||||||||||||||||||||||||||||||||
Technical specifications |
| Manufacturer: TRUMPF |
| Designation: TruDisk 6602 (4C) |
| Condition: very good condition |
| Year of manufacturing: 2012 |
| Laser type: disk laser |
| Wavelength: 1030 nm |
| Operating mode: cw + pulsed |
| Laser power: 6600 W |
| Stimulation: diode pumped |
| Beam quality (BPP): 8mm mrad |
| Operating voltage: 400V AC |
| AC frequency: 50Hz |
| Applications: cutting, welding, cladding |
| Materials to be processed: mild steel, high strength steels, stainless steel / CrNi, aluminium, titanium, copper / brass |
| Equipment: beam switch with 2 fiber exits, option: field bus interface |
Fiber cable |
| Fiber cable connector: LLK-D |
| Fiber core diameter: min. 200 µm |
